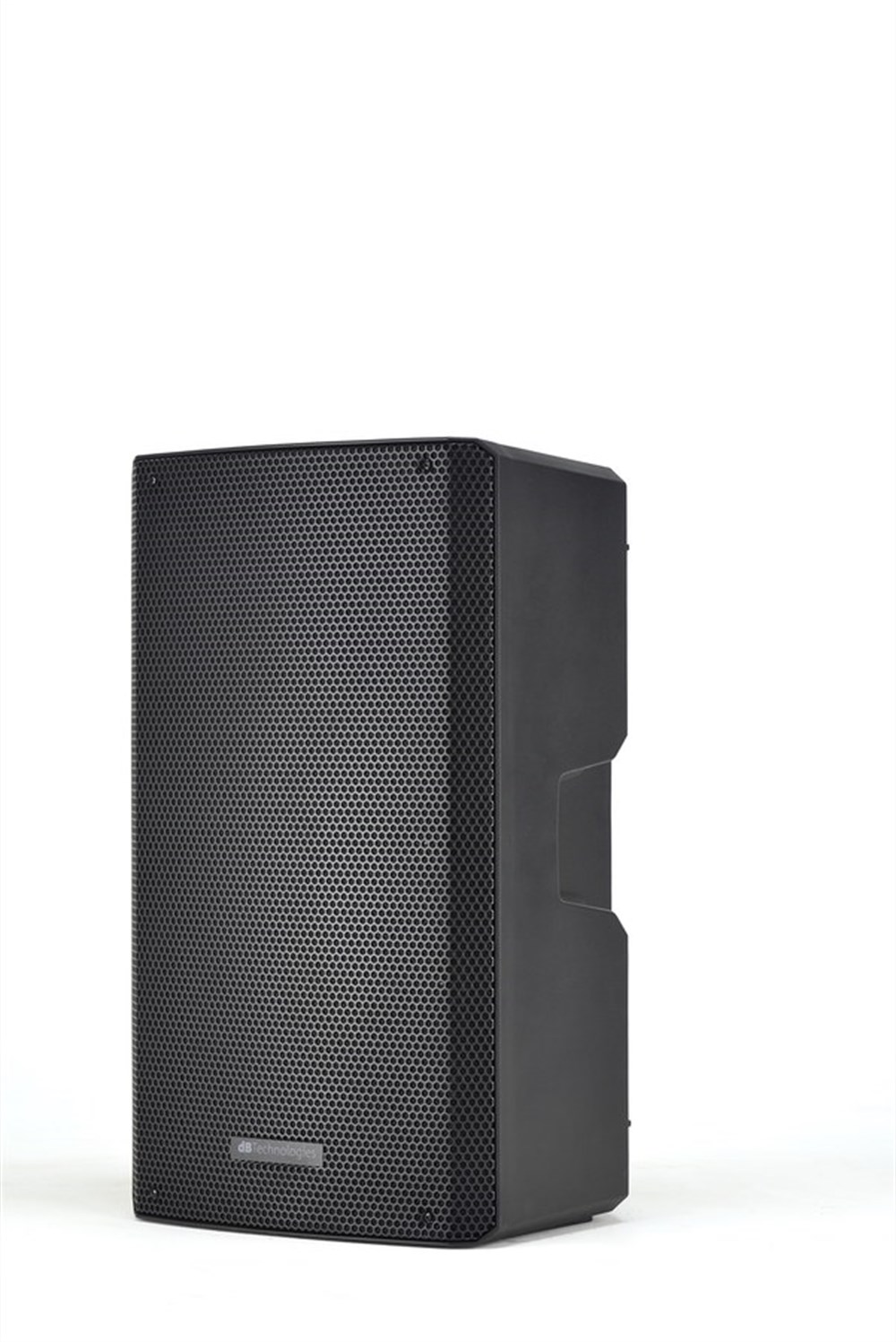

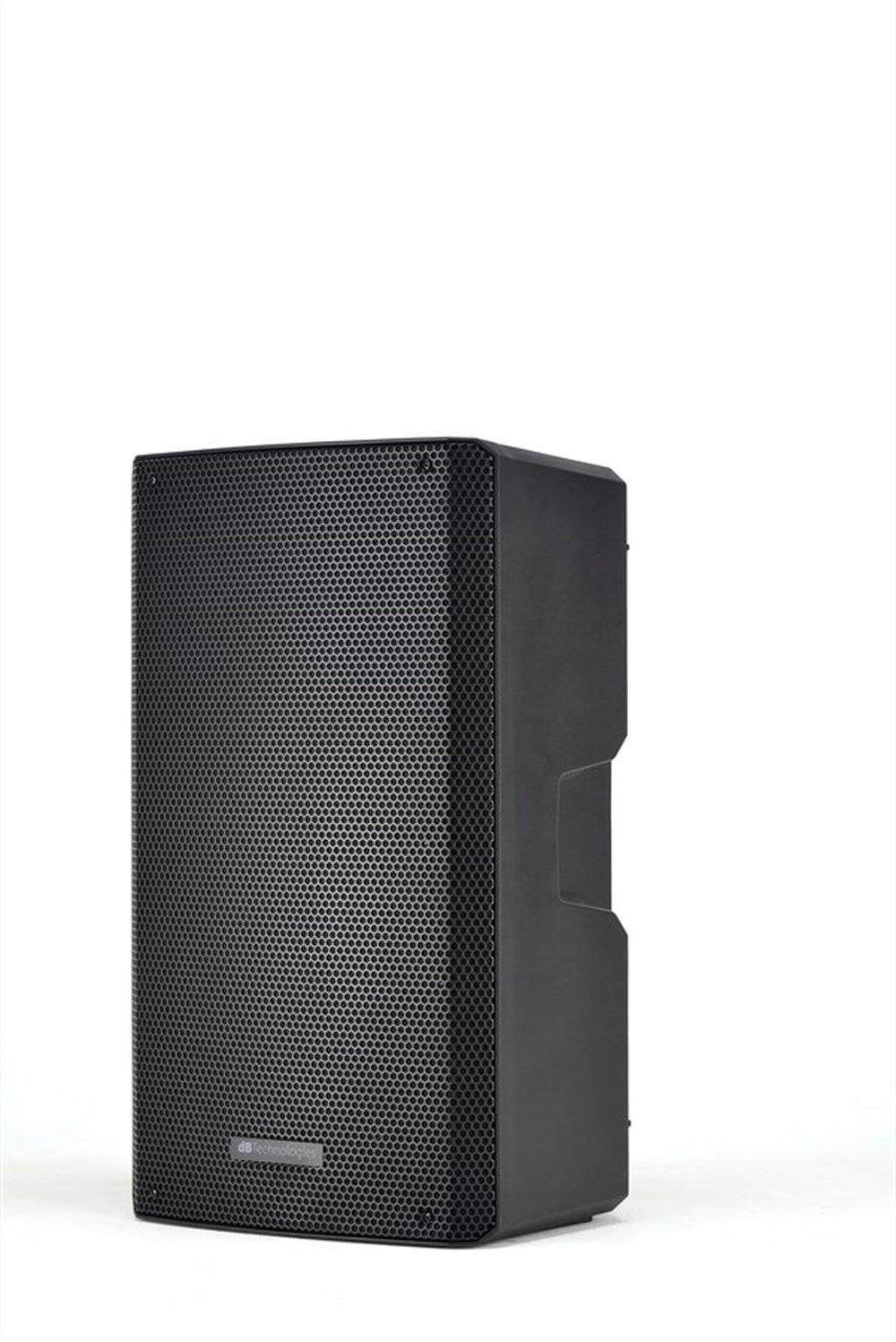

dB Technologies SYA 15 2-Yollu 15-inch 800 Watt Aktif Kabin Hoparlör
3 Channel IN
1 link OUT with link/mix switch
Linear Phase FIR Filters for accurate sound reproduction
DSP presets for wide versatility
Soft cover included
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]48 - 18.000 Hz
Max SPL128 dB
HF1" CD, 1.35"v.c
LF15", 2.5" v.c.
Dispersion90°x60°
Crossover Frequency1800 Hz (24 dB/oct.)
Amplifier
Amp TechnologyClass D(LF)+Class AB (HF)
Power Peak (LF+HF)800 W
Processor
Controls1xVolume, 1xslide switch mic/line
Indicatorspower on/signal/limiter LEDs
ControllerDSP 20/56 bit
AD/DA Converter24 bit/ 48 Hz
Systems PresetsPlayback, Flat, Bass Boost, Wedge
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS
Bluetooth Input1xBluetooth receiver
SIGNAL Output1xXLR Male (LINK/MIX)
Mechanics
HousingPolypropylene
Handles3 (2 on side 1 on top)
Angles UpMonitor Use 45°
Pole Mount36 mm, double positioning
Width430 mm (16.92 in)
Height722 mm (28.44 in)
Depth402 mm (15.82 in)
Weight19.3 kg (42.54 lbs)
